Our wheel rim range covers most common sizes & applications. For us to quote you please read our guide below & let us know your requirements. For assistance please call us on 01159 940 900, or live chat or message us & we will be glad to help!



Small Wheels with Centre Bore Only - for Wheel Barrow, Sack Truck, Materials Handling

Small Wheel with bore

Sadly we do not offer this type of small wheel rim simply due to the vast range of differing size specifications used by manufacturers world wide. If you require a replacement rim of this type we would advise you to try to find the original equipment manufacturer for a spare part for their particular piece of equipment.

These small wheels can be made from either plastic or metal, and simply have one hole through their centre that the machines axle goes through. This wheel type is often found on wheel barrows, sack trucks, small trailers and other hand powered equipment. If you can find a supplier of small rims like these you would need to give them the following information:

i) Tyre & Rim Size - The size of your tyre as it is written on the sidewall & the rim size if know.
ii) Bore Diameter - The internal diameter of the bore hole, or the diameter of the axle.
iii) Bore Length - The length of the bore hole.
iv) Plastic or Metal - Do you need a plastic or steel wheel rim.

The diagram at the bottom of this page helps illustrate what these measurements mean. The diameter of the centre bore hole can vary from one machine to another, and it is common for machinery manufacturers to use a standard size (say a 35mm bore hole diameter), and then use plastic inserts (called bushing kits) placed inside the bore hole to reduce the holes diameter to the size required for your specific axle diameter.

In addition to the bushing kit these wheel rims often have a bearing inside the wheel rim. The bearing helps the wheel to rotate on the axle. There are 3 types of bearing you may have, either a roller bearing, ball bearing, or plain bearing. The pictures below illustrate the 3 types.



Small Wheels with Stud Holes - for Small Trailer, Lawn Mower, Quad

Small Wheel with Bore for Hub FitmentThese kind of wheels look like the image to the right, and have a centre bore hole along with a number of stud holes drilled around it. They are designed to attach to your machines existing hub and axle. They are normally always made from steel and come as either a solid one piece wheel rim, or as a two piece split wheel rim which are then bolted together.

We will soon have our range of common small wheels listed to buy on the website, but for now please contact us with your requirements to obtain a quote. Use the Submit My Wheel Information Form to send us the information we need and we will then contact you with a quote.

Please note that Quad, ATV & UTV wheel rims can be very specific to the manufacturer of the machine, and their specification may not match the common specs we carry. In this instance we will advise whether we can offer a solution for you, else for certain machinery you may be forced to buy from the main manchinery dealers as we sadly cannot manufacture rims this small in our workshops.



Truck Rims

Medium Wheels - for Truck, Bus, Van, Caravan, Trailer

We carry a large range of common commercial wheels for van, truck, bus, larger trailer & caravan. These will be listed on the website soon, but for now please send us your wheel information via the Submit My Wheel Information Form, and we will contact you with a quote. Van, truck and bus wheels do come in some common popular sizes and bolt pattern configurations, so if you can provide us with at least some of the information we may be able to suggest a few options that could be what you are after.

Most van, truck and bus rims will have either a 4, 5, 6, 8 or 10 stud bolt pattern. The studs/bolts can be varying distances from the centre of the wheel rim. It is clearly important that these measurements are taken correctly else the wheel rim will not bolt onto the hub/axle of your vehicle! Please read our guide to measuring your rim for help.

For the less common wheel specifications, for say vintage buses, or American market vehicles, you may struggle to match up the specification with what we can offer from our 'off the shelf' range. This size wheel rim is often too small for us to manufacture in our workshop, so on occasion we may not be able to offer you a solution, but please contact us none-the-less and we will do all that we can to find something that will work.



Large Wheels - for Tractor, Agri, Construction & Earth Mover Equipment

Agri Rims

Wheel rims for tractor, agricultural, industrial and earth moving equipment tend to come in some standard 'off the shelf' wheel sizes and bolt configurations for popular vehicles, whilst other less common wheels/machinery require the wheel to be specially manufactured in our workshop to your exact specification.

Standard Wheels - We carry a large range of common agricultural and industrial wheels for tractors, telehandlers, loaders, forklifts and other machinery. These will be listed on the website soon, but for now please send us your wheel information via the Submit My Wheel Information Form, and we will contact you with a quote.

Manufactured Wheels - If your wheel rim isn't an off the shelf option we can usually manufacture it for you. The timeframes on manufacture tends to be between two and four weeks depending on the amount of work currently booked in to be completed. To help us find or manufacturer the wheel you're looking for, we need some key information. In addition to the Tyre Size and the Rim Size we also need to know exactly how the centre plate fits onto the hub (the Bolt Pattern/ Stud Configuration).

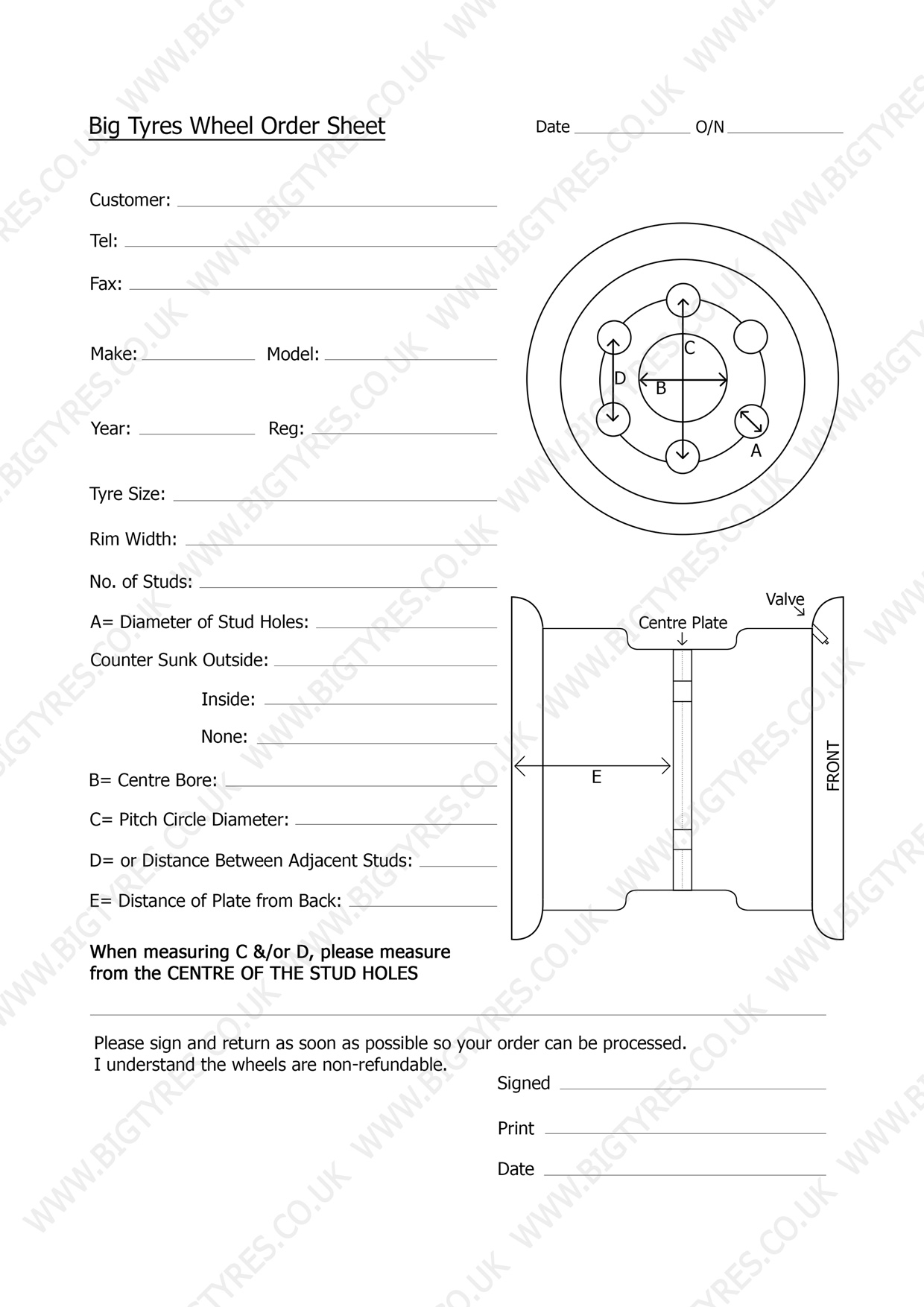

Submit My Wheel Information Form

To pass us your information please fill in the form below and click 'Send Message' to email it to us. This form is also available to Download in JPG Format or Download in PDF Format if you wish to print it out. Once we have received your information we will contact you with the cost and lead time to manufacture your order.

To help you understand the form & the measurements we need from you please read the following guide:

Centre plate

Number of Studs - The number of studs drilled into the wheel/on the hub. If there is an even number of stud holes then we will need the Pitch Circle Diameter (PCD) (refer to 'C' below). If you have an odd number of stud holes then we need the distance between two adjacent studs (refer to D below).

(A.i) Diameter of Stud Holes - The edge-to-edge internal diameter of each stud hole.

(A.ii) Stud Holes Countersunk - If the stud holes are countersunk on the inside or the outside of the hub.

(B) Diameter of Centre Bore Hole - The diameter of the centre hole in the rim.

(C) Pitch Circle Diameter (PCD) - For an even number of studs. The distance between the centres of two opposite stud holes. Also known as the Bolt Circle Diameter (BCD).

(D) Distance Between Adjacent Studs - For an odd number of studs. The distance between the centres of two adjacent stud holes.

(E) Distance of Centre Plate from Back - The distance between the centre plate and the back edge of the wheel. If you know the exact offset of the hub then you can provide it, but please specify whether the centre plate is offset towards the front or the back of the wheel. Our quick Offset Guide below might help, or you can contact us.

Contact Information

Wheel Information

Confirmation

  • Any wheels which require manufacture will be made to the provided specification, in which case they are non-refundable.

* Required Fields



Wheel Measurement Guide - Measuring PCD & Offset

The Pitch Circle Diameter (also Bolt Circle Diameter) is the diameter of the circle which passes through the centre of all of the stud holes. The simplest way to get the PCD is to measure from the centre of one stud to the centre of the opposite stud. If the wheel has an odd number of studs then you can measure from the centre of one stud to the centre of an adjacent stud and give us that measurement instead.

Wheel offset is the distance from the middle of the rim to the to the mounting pad. The mounting pad is the rear face of the wheel centre which has the bore and stud holes. On a flat-disc wheel the mounting pad will be flush with the rest of the centre plate, but on a profiled disc the mounting pad will be raised. If the mounting pad is in line with the centre line then the wheel has Zero Offset. If the mounting pad is closer to the front edge of the wheel then the wheel has a Positive Offset, and if the mounting pad is closer to the rear edge then it has a Negative Offset. If we are manufacturing the wheel then we need either the Rear Spacing or the Wheel Offset.

Positive, Negative and Zero Offset for wheels explained.



Bearing Illustration & Measuring Small Wheels

There are 3 types of bearing you may have in your small wheels, and these are plain, roller and ball bearings. The picture below illustrates them. It is often necessary for small wheel rims to be paired up with a relevant bushing/bearing kit. This will ensure your wheel rim fits the axle it is intended for.

Small Wheel with bore

When it comes to measuring your small wheel rim, the bore length and bore diameter are needed. If you have a bushing kit on your wheel already then the internal diameter of that bush is the measurement we would need. If you can measure the width of the rim (inside the bead edges) that helps, but if this is too difficult you can also tell us the tyre size as marked on the tyre side wall and we can suggest which wheel rim is suitable for that tyre.
